ALZO Liberator Battery Door Clearance Plate for Panasonic Lumix G7 – ALZO Digital

ALZO Liberator Battery Door Clearance Plate for Panasonic Lumix G7

ALZO Digital

1473-PAN

Continue Shopping or Checkout

  • With 5 year warranty
  • Solution to allow battery and memory card access when camera is mounted on a tripod or a rig
  • Special 3M grip rubber base prevents rotation
  • Can be used on any camera with a 1/4 inch x 20 tripod mount threaded hole
  • Accepts all tripod quick release plates
  • Can support cameras and gear up to 5 pounds

International orders: order via Paypal with shipping cost included.

There is a serious issue with the Panasonic G7 and other mirrorless cameras when used for video production:  When you attach a tripod quick release plate to the camera base, you can no longer open the battery access door, which houses the memory card slot as well. The problem is that the small body of this camera has the location of the tripod mount screw thread too close to the battery access door. Therefore, memory card and battery changes require full disassembly of any camera rig gear. This problem makes using the Panasonic G7 undesirable for video production where accessories are typically added to the camera, like a microphone mixer, wireless and wired microphones, audio recorders, cage brackets and other stuff. You will not have a functional tricked out video rig when you can't get fast access to the memory card or battery. Still photography with a tripod is a serious problem with these cameras as well.

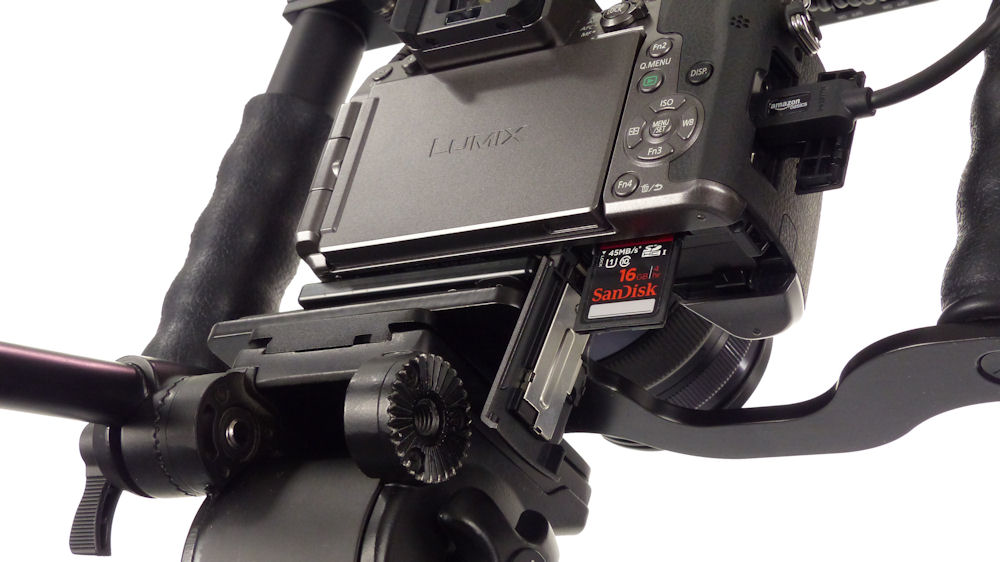

The solution to this problem is this ALZO Liberator Battery Door Clearance Plate shown here. This simple device attaches to the bottom of the camera with a 1/4 inch x 20 Cap Screw, and then includes 2 tripod mount thread holes. One of the holes is positioned at the lens focal point and the other is farther from the battery access door to allow for usage with very large camera quick releases, like those on PRO video tripods.

The special 3M adhesive pad on the bottom of the plate provides a strong bond, but it is not permanent. This adhesive pad prevents rotation of the plate on the camera. The ALZO Liberator Battery Door Clearance Plate can be removed at any time without leaving any residue on the camera. The remarkable adhesive can be cleaned with soap and water to restore adhesion properties.

  • Solid 1/4 inch thick aluminum construction
  • Has two (2) 1/4 inch x 20 stainless steel female thread tripod mount holes
  • Includes flush hex screw mount
  • Includes hex key install tool
Dimensions: length: 2.83 inches; width: 1 inch; height: 0.25 inches
Weight: 1.2 oz.
