2100-20

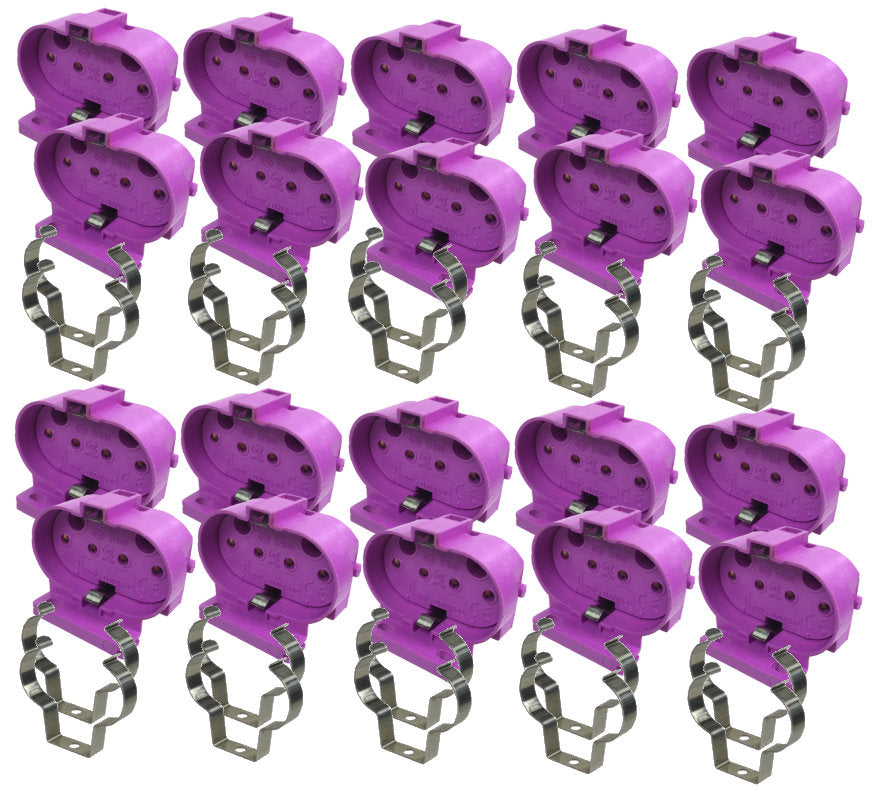

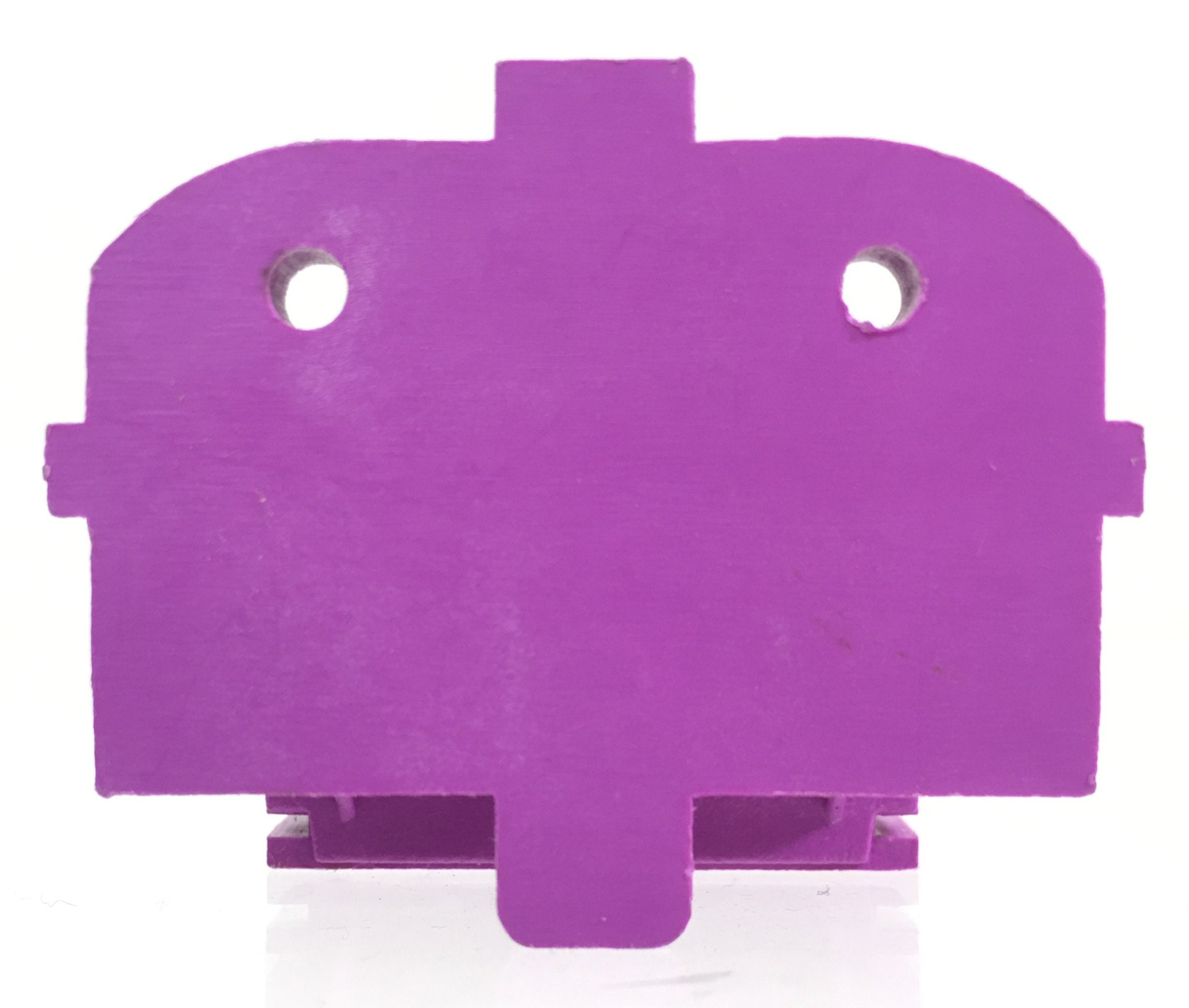

This 20 piece kit of 2G11 lamp holder sockets and metal support clips are specifically designed for use with UV CFL Germicidal, Sanitizing light bulbs. Example: OSRAM 23392 - GFT36DL/2G11/SE/OF

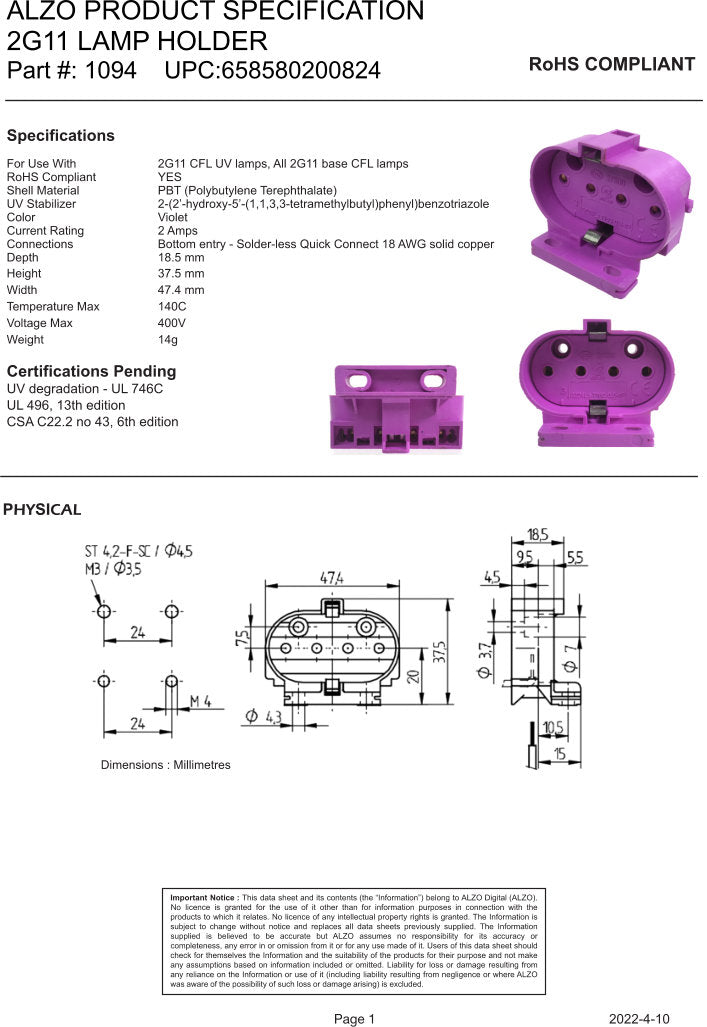

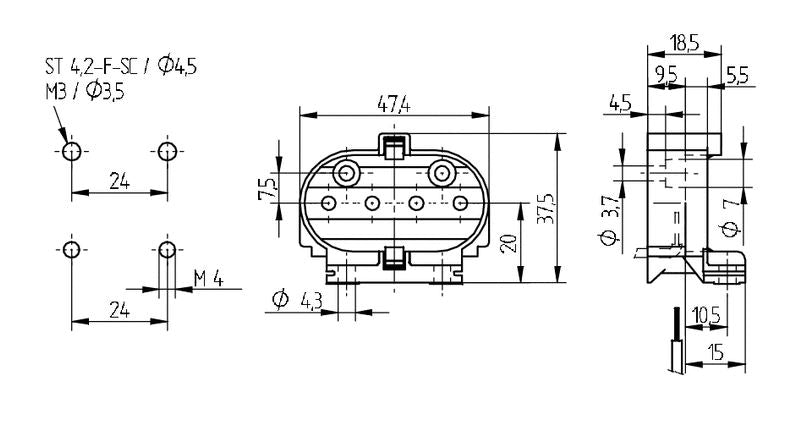

The sockets are constructed from PBT and includes a UV stabilizer compound to greatly extend the life of the lamp holder socket. See the dimension drawing image for mounting details.

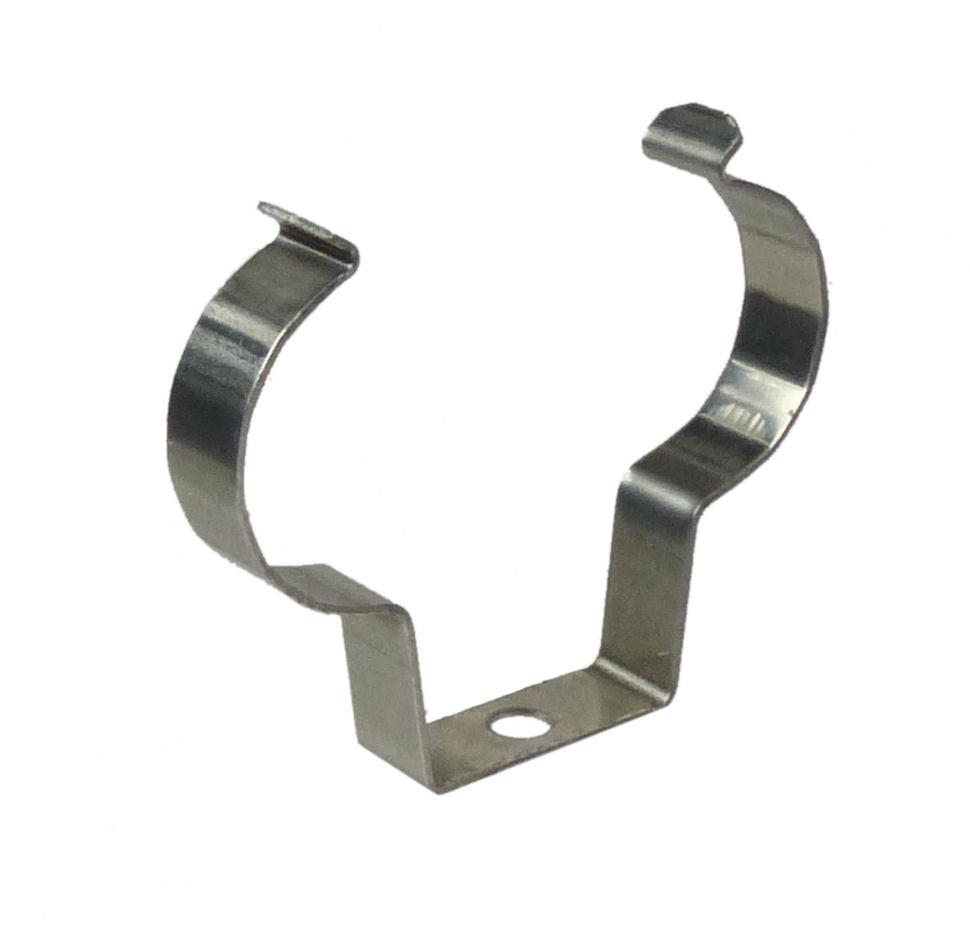

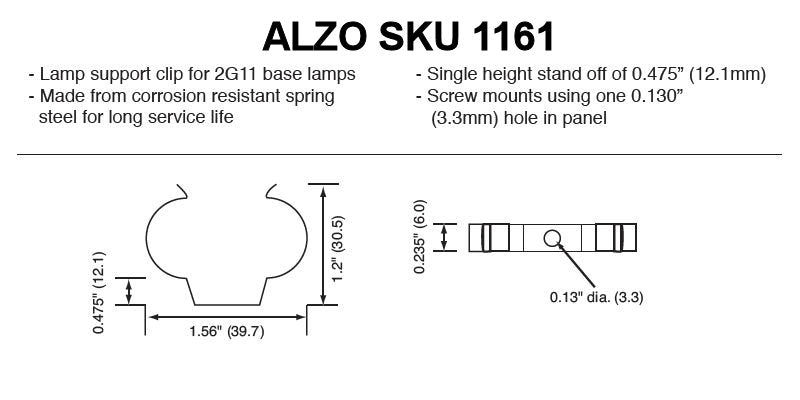

The spring metal clips are ideal for UV light fixtures as it will never degrade from the UV light.
Certifications Pending
UV degradation - UL 746C
UL 496, 13th edition
CSA C22.2 no 43, 6th edition
Quanty discounts available. Call or write Customer Service for a quotation.
For Use With: 2G11 CFL UV lamps
RoHS Compliant: YES
Shell Material: PBT (Polybutylene Terephthalate)
UV Stabilizer: 2-(2’-hydroxy-5’-(1,1,3,3-tetramethylbutyl)phenyl)benzotriazole
Color: Violet Reduces UV light absorption
Current Rating: 2 Amps

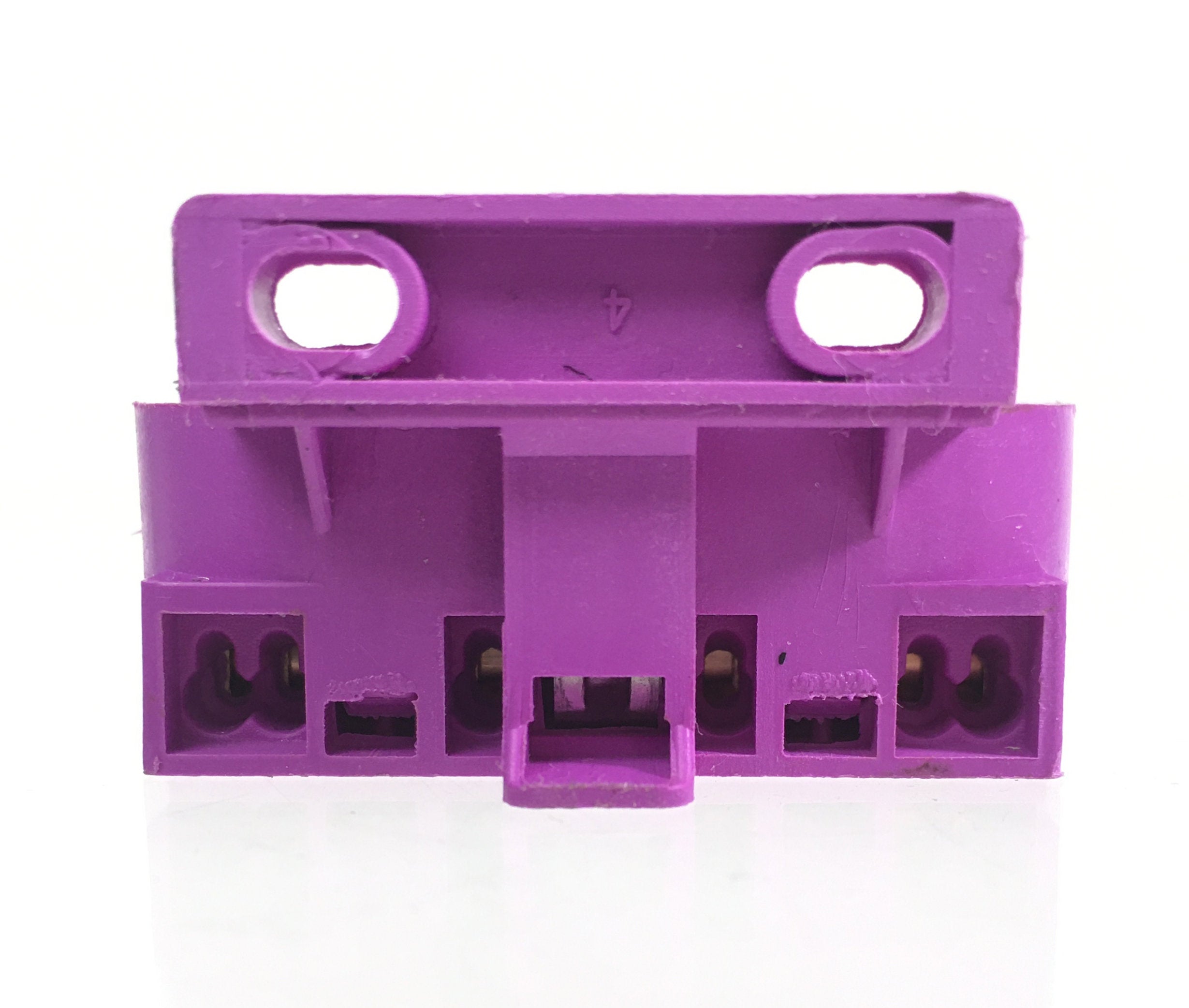

Connections: Bottom entry - Solder-less Quick Connect 18 AWG solid copper
Depth: 18.5 mm
Height: 37.5 mm
Width: 47.4 mm
Temperature Max: 140C
Voltage Max: 400V
Weight: 14g
