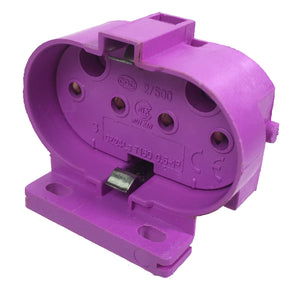

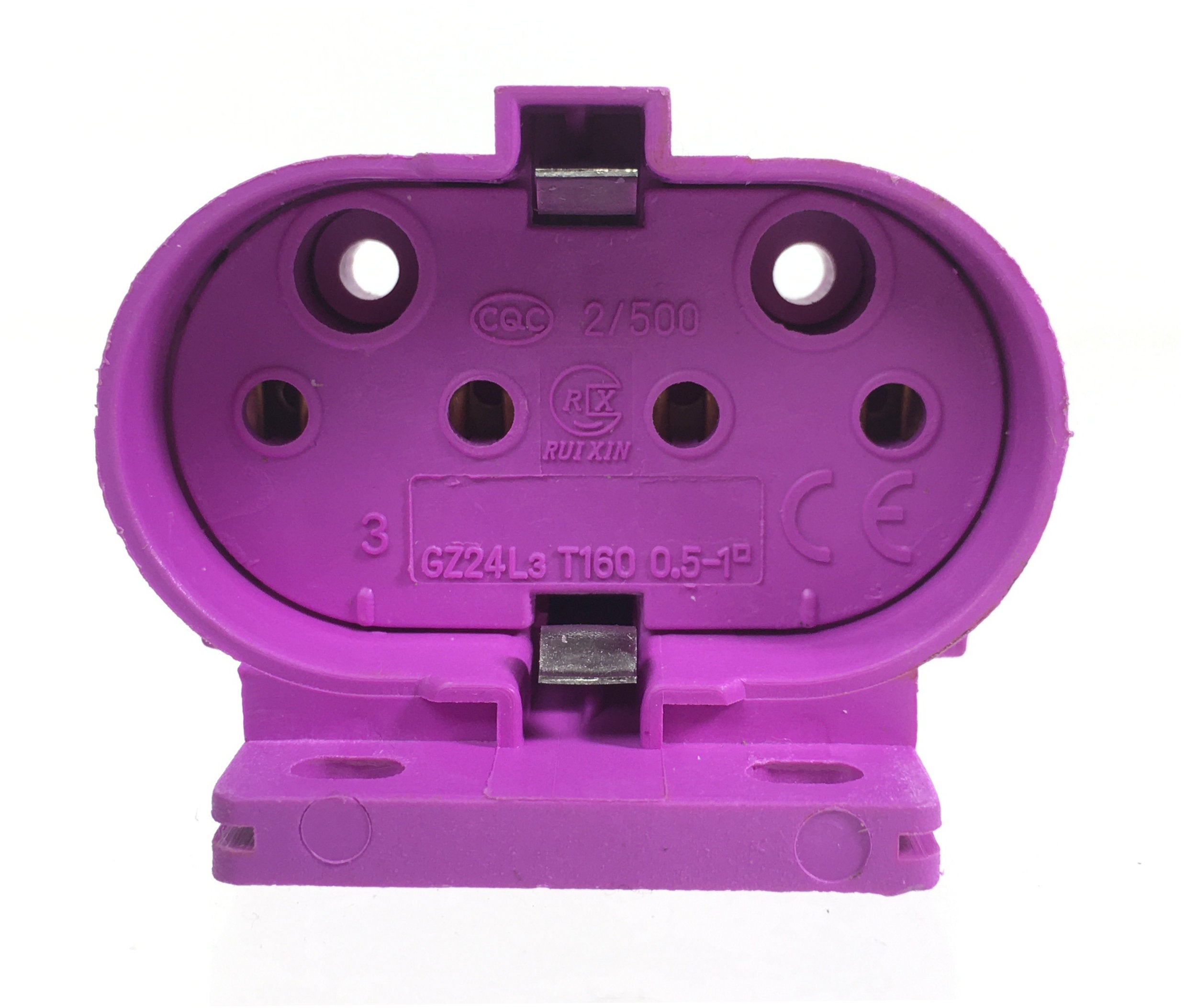

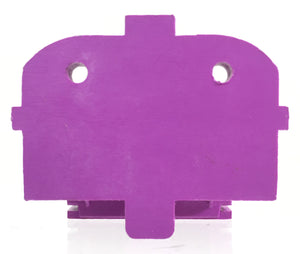

2G11 UV lamp holder - Extended life UV Germicidal & Sanitizing light bulb socket lamp holder

This 2G11 lamp holder socket is specifically designed for use with UV CFL Germicidal, Sanitizing light bulbs. Example:OSRAM 23392 - GFT36DL/2G11/SE/OF

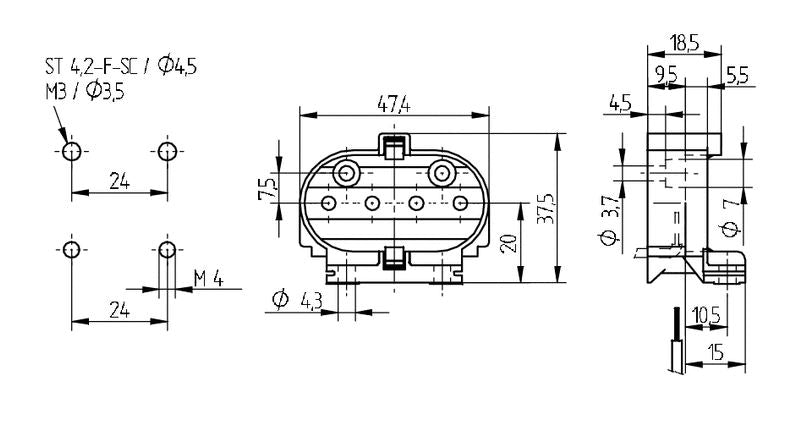

This socket is constructed from PBT and includes a UV stabilizer compound to greatly extend the life of the lamp holder socket. See the dimension drawing image for mounting  details.


For Use With: 2G11 CFL UV lamps
RoHS Compliant: YES
Shell Material: PBT (Polybutylene Terephthalate)
UV Stabilizer: 2-(2’-hydroxy-5’-(1,1,3,3-tetramethylbutyl)phenyl)benzotriazole
Color: Violet
Current Rating: 2 Amps

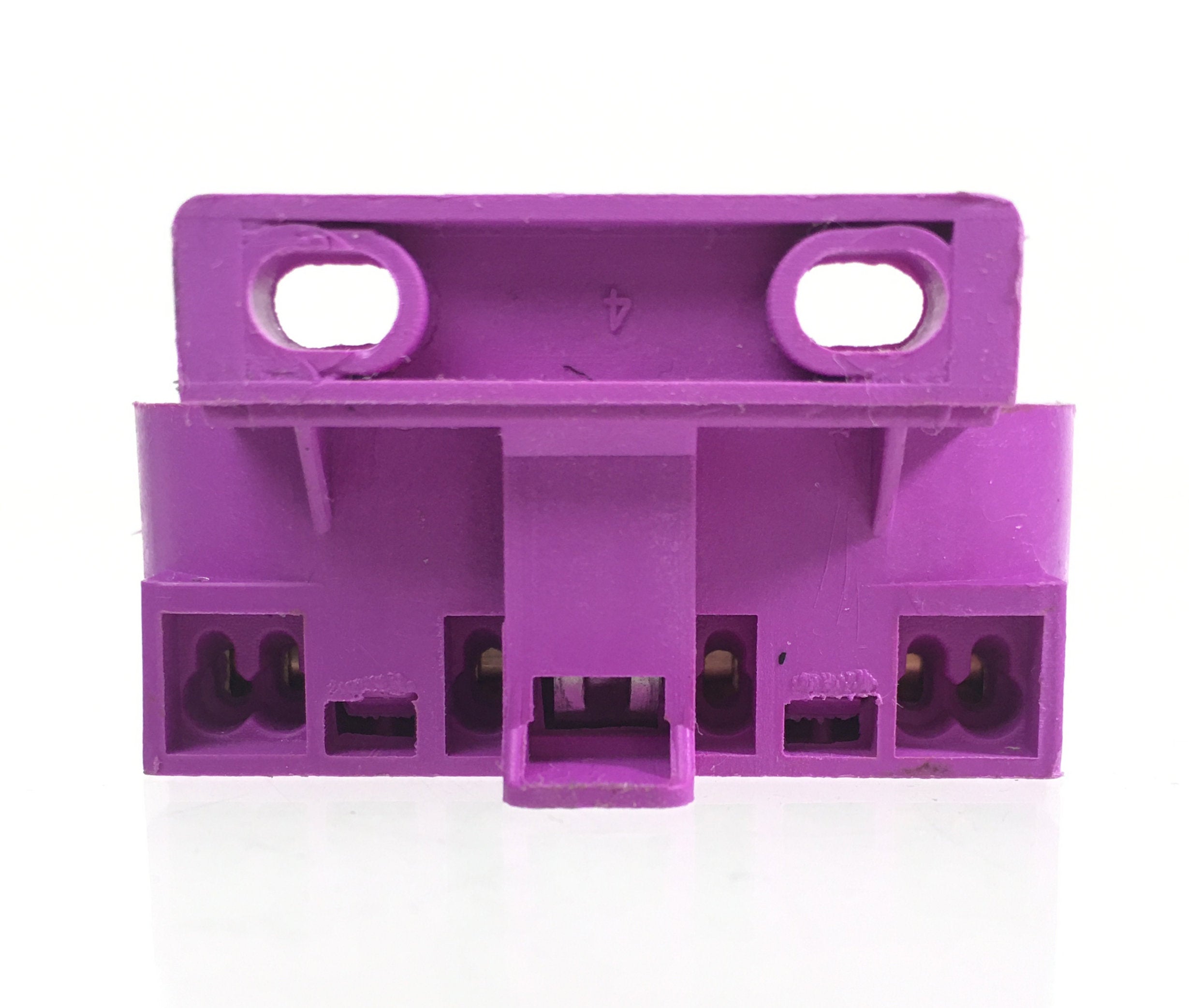

Connections: Bottom entry - Solder-less Quick Connect 18 AWG solid copper
Depth: 18.5 mm
Height: 37.5 mm
Width: 47.4 mm
Temperature Max: 140C
Voltage Max: 250V
Weight: 14g
